Queni Koi are delighted to have secured the sole rights to distribute a comprehensive range of filtration in the UK.
These comprise Drum Filters, Bio Chambers and Showers.
This represents a significant step forward in the evolution of Queni Koi and is very welcome as we continue to plan for our new purpose built premises in 2016.
The main products have been in the European market for over 2 years with great success.
One product is totally exclusive to Queni Koi, our QK22 Drum filter.

The aim of this product is to supply a professional filter at a price suitable to a much wider market sector.

-

https://queni-koi.wistia.com/medias/ygccc220pa?embedType=iframe&videoFoam=true&videoWidth=500



A few characteristics of our drums are...

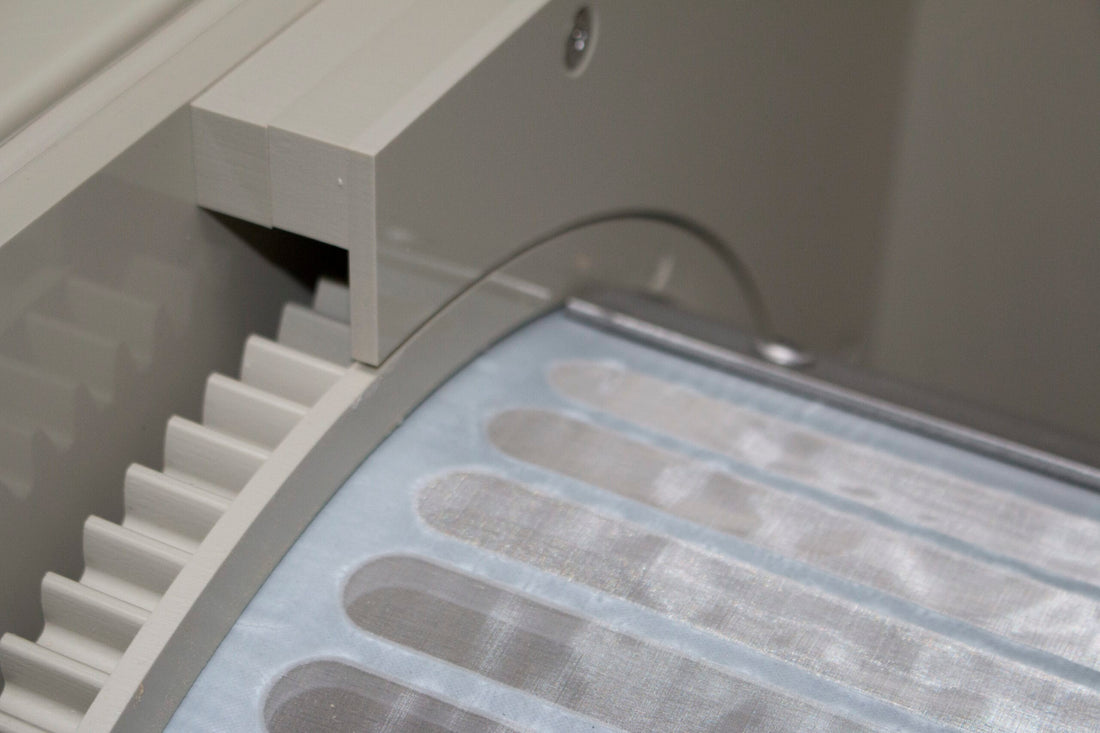

- Woven 70 micron steel mesh.
- Precise CNC machine cut PolyProylene construction.
- Fully automatic cleaning, with low water level safety cut out. To protect equipment such as your pond pump.
- The highest quality jet nozzles, easily replaceable should you encounter limescale build up from hard water. Spray bar demountable.
-  Integrated  UVC clip and optional safety micro switch should you want to install a submersible UVC. On lifting the lid, the UVC will automatically turn off.
- All drums are customisable, such as positioning of the inlets/outlets.
- Cleaning time adjustable.
- Full UK customer service support.
- Height adjustable water sensor probes.
- Gravity installation as standard, Pump fed optional at no extra cost.
- Control panel enabling a manual clean, and either 2 or 3 plugs to have control over your pond pump, UV, cleaning pump. Control panel can be sited away from the drum.
- Pressure cleaning pump 4.2bar (max) included.
- 2 year warranty on all parts including screen with fair usage.
-
Below is further information together with pricing and technical information on the product range.
 -

QK22 Drum Filter
- Maximum Flow - 22,000 litres per hour
- 2 x 110mm Inlet
- 2 x 110mm Outlet
- 1 x 110m Waste
- 2 x plug sockets on the control panel.
- The QK22 is installed with a sophisticated float switch to control the cleaning cycles.

Price: £1695.00
             £1795.00 including lid micro switch for UVC installations.
 -

-

QK35 Drum Filter
- Maximum Flow - 35,000 litres per hour
- 3 x 110mm Inlet
- 2 x 110mm Outlet
- 1 x 110m Waste
- 3 x plug sockets on the control panel

Price: £2295.00
             £2395.00 including lid micro switch for UVC installations.
 -

-

QK50 Drum Filter
- Maximum Flow - 50,000 litres per hour
- 4 x 110mm Inlet
- 4 x 110mm Outlet
- 1 x 110m Waste
- 3 x plug sockets on the control panel

Price: £2645.00
             £2745.00 including lid micro switch for UVC installations.
-

-

QK65 Drum Filter
- Maximum Flow - 65,000 litres per hour
- 6 x 110mm Inlet
- 6 x 110mm Outlet
- 1 x 110m Waste
- 3 x plug sockets on the control panel

Price: £3150.00
             £3250.00 including lid micro switch for UVC installations.
Photo to follow.
-

-
-

 Drum Filters are of course purely mechanical filtration, for your biological filtration we also have Bio Chambers and Showers. Our Bio Chambers used in conjunction with K1 media offer huge biological capacities. Our bio chambers are made so Micro K1 can be used. For the majority of ponds, using the standard sized K1 will offer enough biological capacity. Micro K1 offers nearly double the protected surface area for biological filtration than normal K1.

For example, if you were to fill our QK350 with standard K1 you could achieve 1.75kg of food per day. If you were to use micro K1, then you could achieve 3.5kg of food per day! (Given optimum conditions).

QK150 Bio Chamber
- Recommended Flow Up to 35,000 litres per hour
- 3 x 110mm Inlet
- 3 x 110mm Outlet
- Up to 150 litres of K1 media
- One rubber membrane air diffuser.
- Gravity as standard, pump fed available on request.



Price: £1050.00
             £1195.00 including 150 litres of K1
             £1295.00 including 150 litres of Micro K1
-

-
QK350 Bio Chamber
- Recommended flow Up to 50,000 litres per hour
- 4 x 110mm Inlet
- 4 x 110mm Outlet
- Up to 350 litres of K1 media
- Two rubber membrane air diffusers.

- Gravity fed as standard, pump fed available on request.



Price: £1750.00
            £2095.00 including 350 litres of K1
            £2325.00 including 350 litres of Micro K1
-

-

Soon to be added to the range is two shower filters.

Below is the 1st prototype, we have re-designed parts of this Shower to our own specifications. We will have two sizes as standard. Custom sizes are available on request. Approximate dimensions are.

120cm High x 48cm Width x 100cm Long (4 tiers) (prototype pictured below)
and
90cm High x 32cm Width x 66cm Long (3 tiers)

The smaller 3 tier shower will be the perfect size for a grow on/quarantine system of up to 1500 gallons dependant on which filtration media is used. We will offer a bundle price to include BHM (Bacteria House Media) or our own Pumice Stone media.
