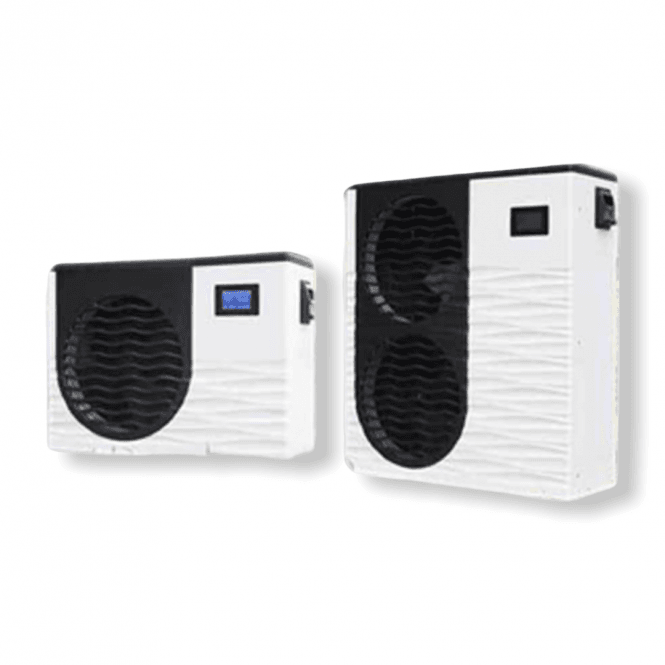

ThermoTec Heat Pumps

Pond Sizing Guide:

Model	Max Pond Volume
Thermotec Inverter Horizontal 9kw	4500 gallons
Thermotec Inverter Horizontal 12kw	6000 gallons
Thermotec Inverter Horizontal 17kw	7500 gallons
Thermotec Inverter Horizontal 19.5kw	9600 gallons
Thermotec Inverter Horizontal 24kw	11,600 gallons
Thermotec Inverter Vertical 29kw	13,800 gallons
Thermotec Inverter Vertical 34kw	19,900 gallons

COP and Performance:

By using the latest inverter technology, the Thermotec Inverter canout perform traditional on/off type heat pumps as well as many other inverter driven models.

Even as the outside air temperature falls, the Thermotec Inverter will still perform well, delivering heat to your pool.

The Thermotec Inverter heat pumps can work well with outside air temperatures as low as -15c

The COP (Coefficient of Performance) is the ratio of the amount of heat (in kw) that the heat pump delivers to your pool compared to the electricity that the heat pump uses (in kw)

By using the latest inverter technology, the Thermotec Inverter has COPs up to 13.6. This means that in these conditions, 1kw of electricity consumed by the heat pump will output 13.6kw of heat to your pool

Extremely Quite Operation:

The Thermotec Inverter range work very silently thanks to a unique internal ventilation system and the inverter technology.

Both the fan and compressor automatically adjust their speed to match the pool heat demand, therefore once the pool is up to temperature, the unit can operate with reduced power consumption and noise.

Colour Touch Screen Controls:

The Thermotec Inverter have a unique 5" colour backlit touch screen control/display panel

This provides easy to use controls

The display will show:

– The current pool water temperature
– The mode (eg heating or cooling)
– If the timer function has been set
– If the fan is operating
– The current time and date
– The outside ambient temperature
– If there is a fault, a fault code is displayed to explain the problem

In addition, the display can show:

– A graph of the temperature of the pool over time so that you can see how the pool temperature is being maintained by the Thermotec Inverter heat pump
– A graph of the power consumed by the heat pump over time

The colour display is backlit making it easy to read in low light conditions and also in bright sunlight

Wifi Control:

The optional Wi-Fi module allows the Thermotec Inverter to be monitored and controlled from a smartphone or any internet web browser.

The Thermotec Inverter App is available for both Android and iPhone

The Wi-Fi module simply connects to the heat pump via the supplied cable

The module is then joined to your wi-fi network to allow it to communicate with the internet

The wifi module also allows HeatPumps4Pools to provide remote monitoring and support of your heat pump with the ability to change any settings if required. This greatly enhances the speed and efficiency of our technical support.

The Thermotec Inverter app can then be installed into your smart phone to give full remote control and monitoring of your pool heat pump.

Using the app you can:

– Turn the heat pump on and off
– See the current pool water temperature
– Alter the desired pool set temperature
– Set the timer
– View the pool temperature history graph
– Change the mode of the heat pump from heating, cooling and auto modes
– Put the heat pump in and out of silence mode (eg for nightime use)
– Show the weather temperatures and information
– Display any error codes and messages

Note: A a wifi signal is required at the location of the heat pump in order for the wifi module to be able to connect to your wifi.

Please test the strength of the wifi signal e.g with a laptop or your smart phone before purchasing the wifi module.

If you do not have a wifi signal at the heat pump's location, then you can either:

1. Use a wifi signal extender to boost the signal in the area of the heat pump
2. Use power lan adaptors plugged into mains sockets in the house and the pool shed. You can then connect a wifi extended to the powerlan adaptor in your pool shed.

Specifications:

Winter Cover and Mounting Feet Included:

The Thermotec Inverter horizontal range of heat pumps come with:-

– 2 x Water connection unions (with 50mm glue socket outlets - 1.5" adaptor bushes available as an option)
– 1 x Basic Winter cover (heavy duty winter cover available as an option - see below)
– 4 x Rubber mounting feet (heavy duty mounting blocks available as an option - see below)

Optional Extras:

– Wifi Control
– Heavy Duty Mounting Feet

These heat pumps come with rubber  mounting feet (see photo above).
Alternatively you can purchase these heavy duty Mounting Feet.
These raise the unit off the ground by approximately 100mm, and also help to reduce vibration.

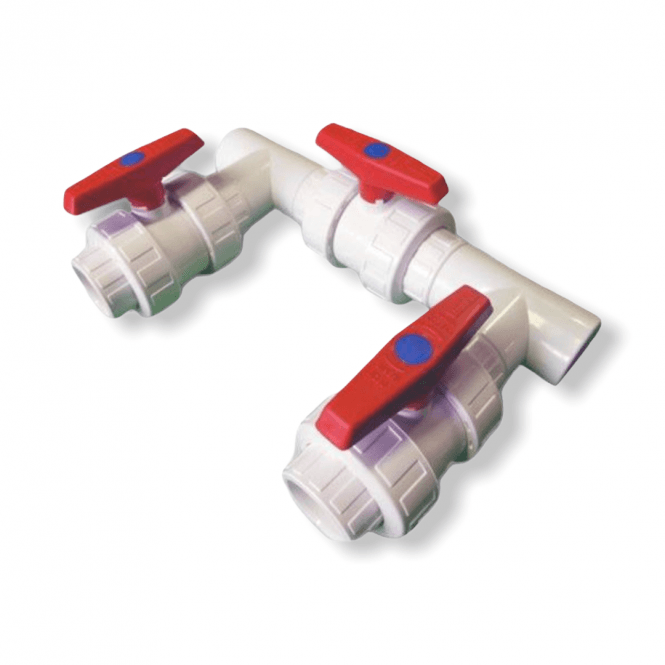

– Bypass Kit:

Heavy Duty Winter Cover:



The unit comes with a lightweight winter cover, however we offer a heavy duty cover which will give you added and extended protection against the winter weather

Warranty:

The Thermotec Inverter heat pumps come with a 3-year warranty on all components:-

• UK - First year - parts and labour warranty, Years 2 and 3 - parts only warranty, or return to us in the UK (customer pays transport cost)
• Europe and outside the UK - 3-Year parts only warranty or return to us in the UK (customer pays transport cost

We recommend that you retain the pallet and packaging that the heat pump was delivered with in case you need to return the unit to us for repairs under the warranty.

Please Note: The warranty will not apply where the heat pump has been installed incorrectly, or has been damaged by freezing.

Please Note: These are not eligible for loyalty points so please call to order.
